sw-jscad is a JavaScript library by Salvador Workshop that extends jscad for creating parametric 2D and 3D CAD designs with JavaScript code.
I started writing this library in the start of 2025, and found it to be a great way to design 3D models for my new 3d printer. But more importantly, this project allowed me to learn about developing a library for public consumption. And it gave me a tiny glimpse into the design decisions library designers and maintainers have to make regularly.
Tech
Key Stats
Core technologies: npm, 3D Modeling, CAD/CAM Software, Open Source Development
Online viewer: sw-jscad-viewer.netlify.app/
API Docs: salvador-workshop.github.io/sw-jscad/
NPM package: npmjs.com/package/sw-jscad
GitHub: github.com/salvador-workshop/sw-jscad
Design
The toolkit is composed of several packages, arranged in a layered architecture.
Core packages
The core packages power everything
| Package | Description |
|---|---|
| sw-jscad | JSCAD library for parametric modelling of architectural components |
| sw-jscad-families | Designs groups of related models |
| sw-jscad-std-specs | Definitions for building elements and various standards/specs |
| sw-jscad-ui | UX, layouts, etc |
Sub packages
The sub packages build larger and more complicated components using the core packages as building blocks.
| Package | Description |
|---|---|
| sw-jscad-builders | Tools and functions for building assemblies |
| sw-jscad-factory | Doesn’t exist yet. For larger and more complicated assemblies, compared to the builders package |
Models & Functions
The library can output 2D and 3D designs of things like:
- arches (1-pt and 2-pt for now)
- foils (like trefoils, quatrefoils)
- walls
- roofs
and a variety of other functions that make JSCAD modelling easier.
Walls

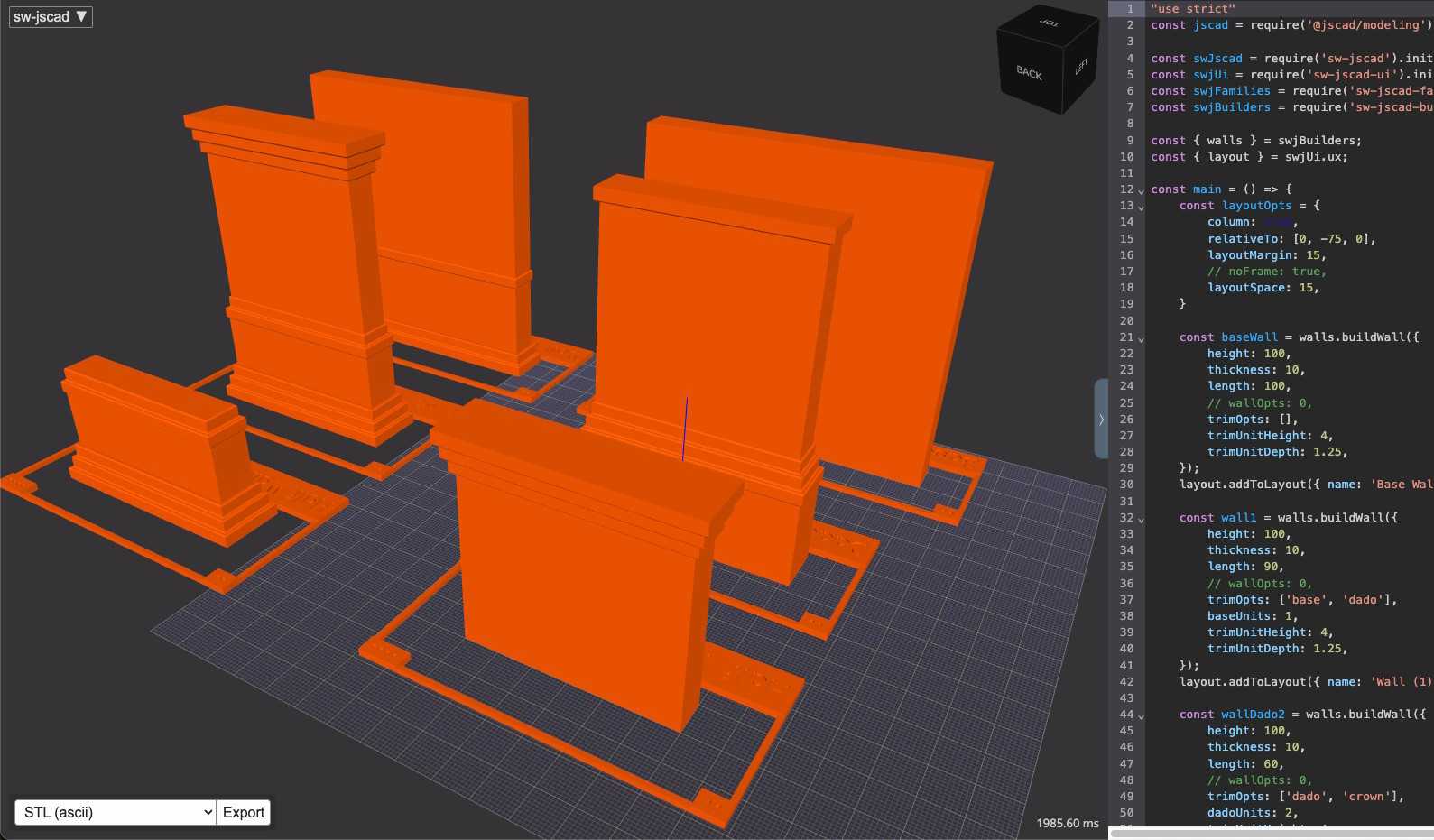

sw-jscad’s wall builder has several options for base/dado/crown moulding.
The dado ornamentation respects changes in thickness between the lower and upper portions of the wall.
The height of the thickness change can be specified as well.
Arches, Foils

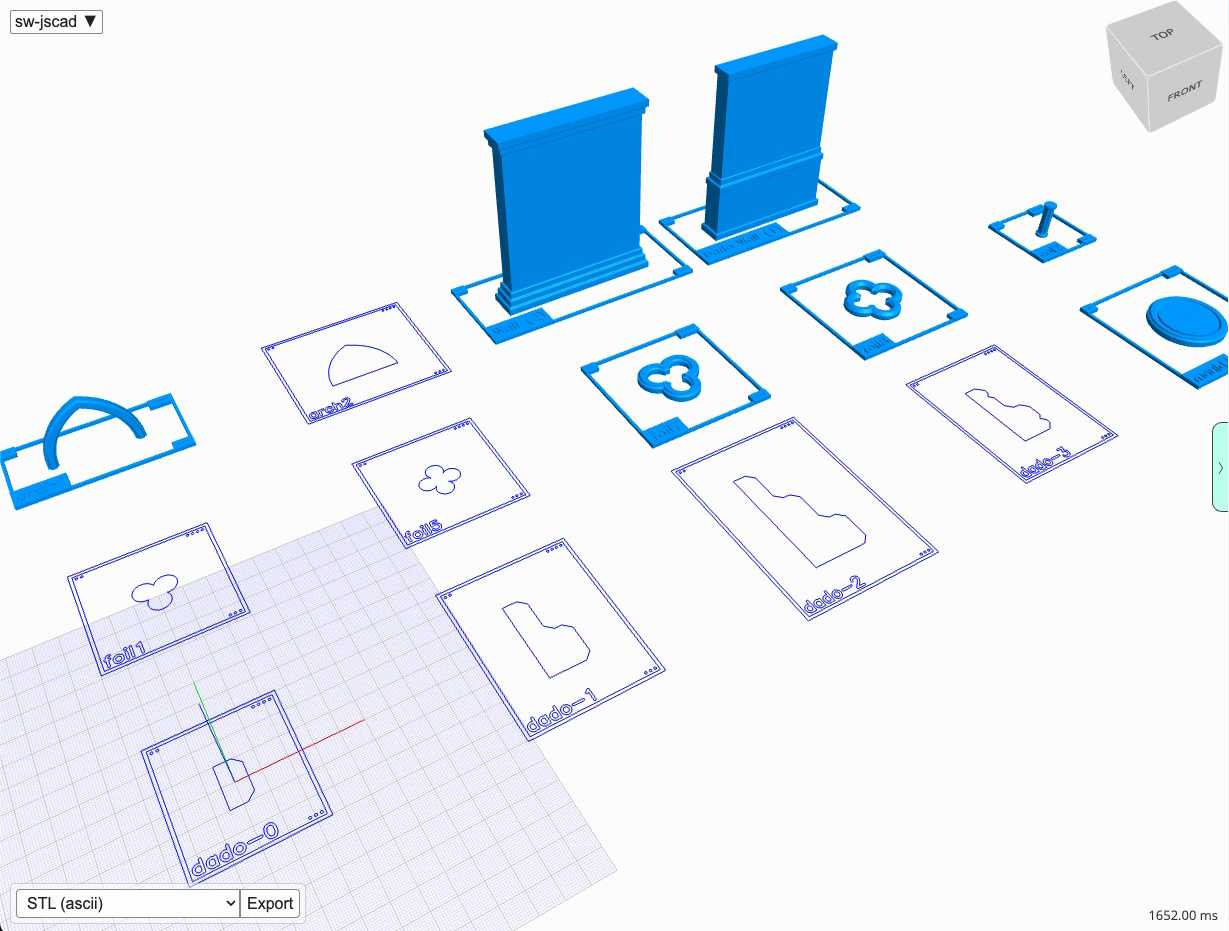

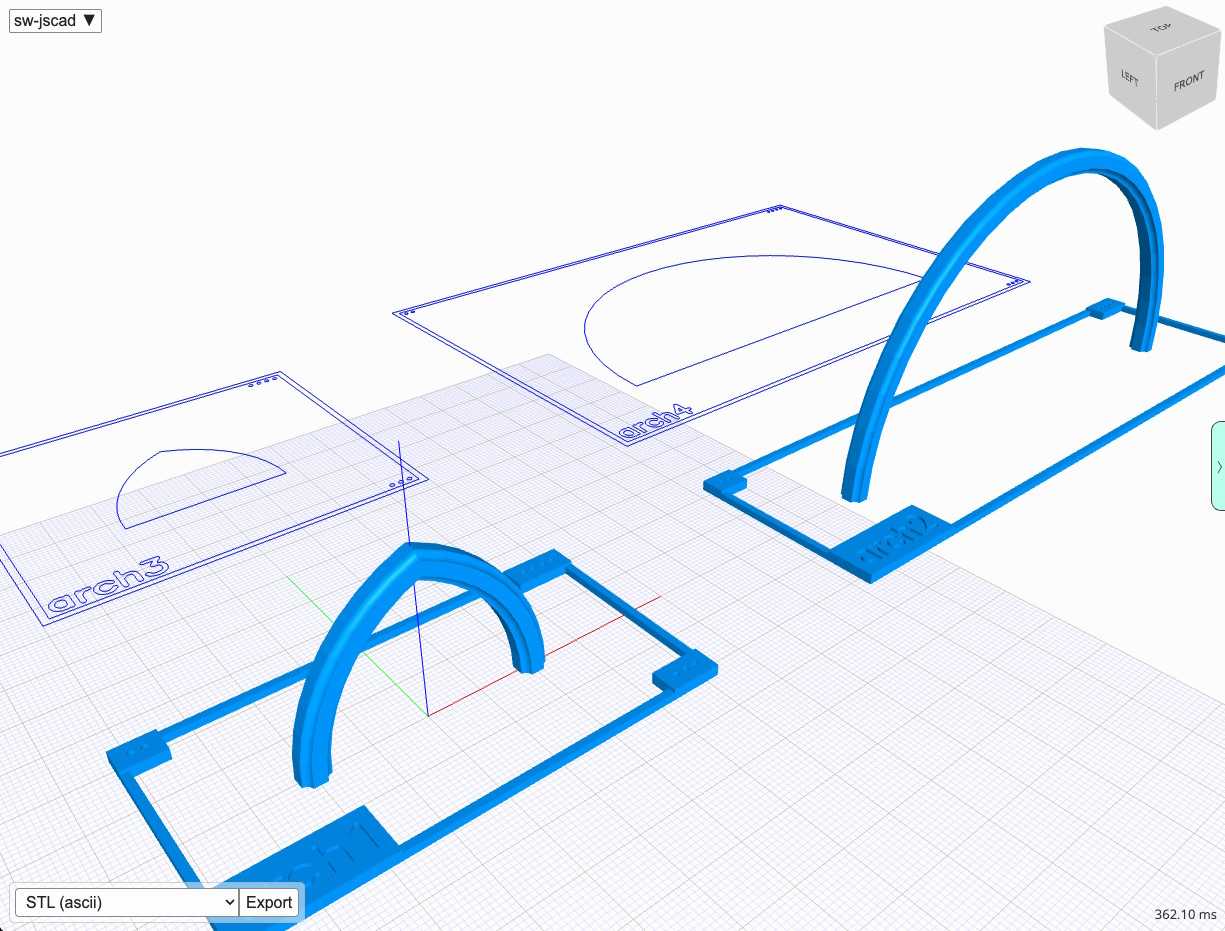

One-point(circular) and Two-point (gothic) arches

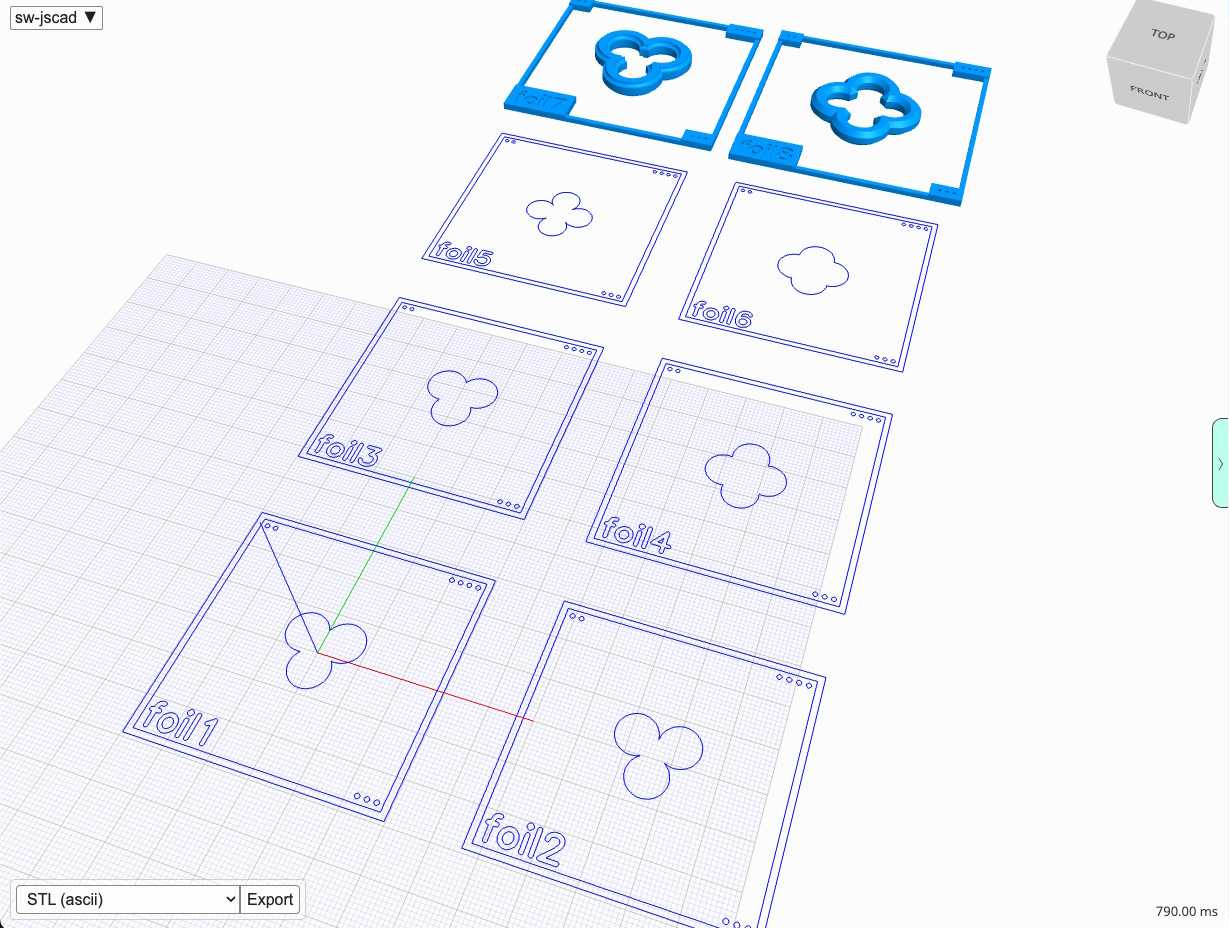

2D and 3D foil designs
Entryways

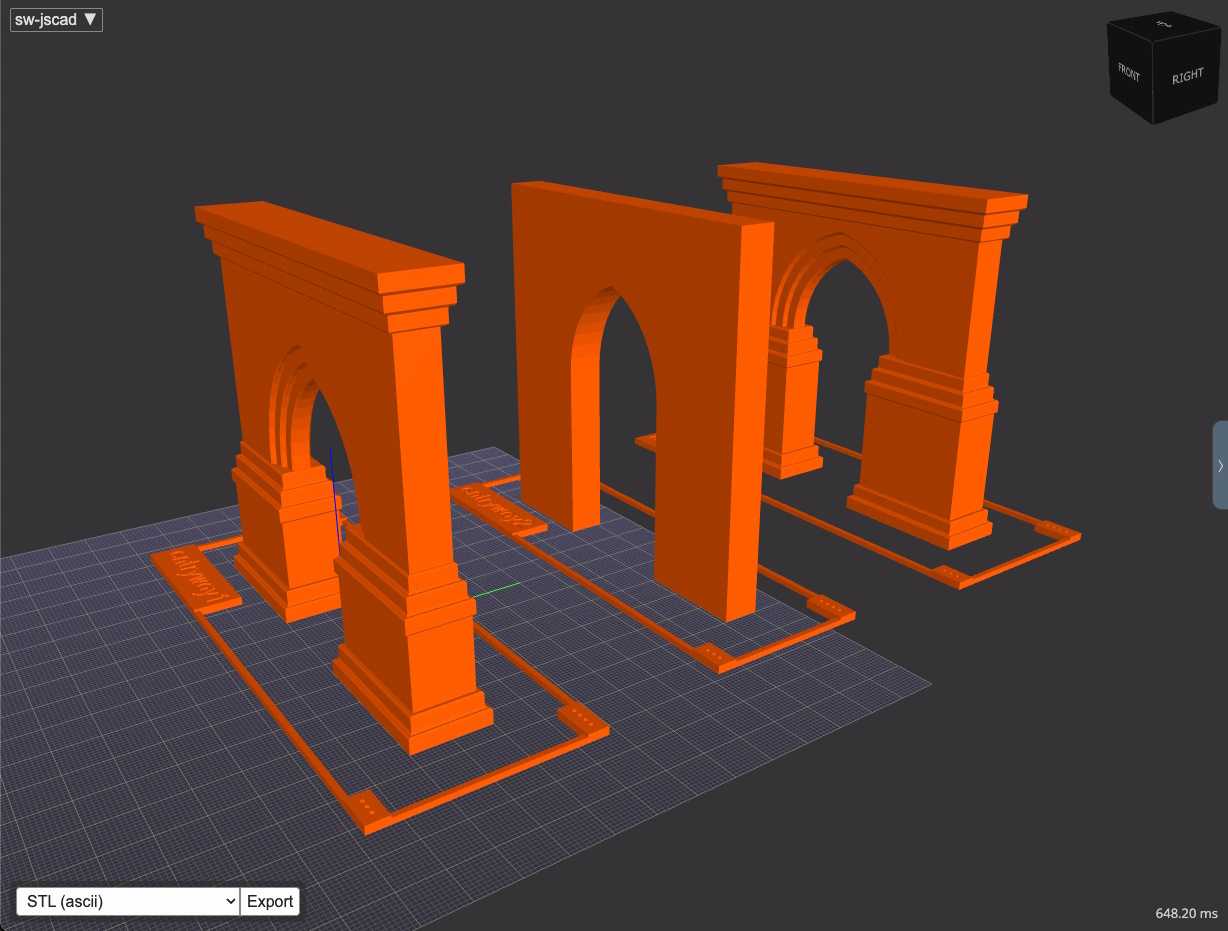

Entryways combine a wall with an arched opening, in this case a gothic arch. The builder ensures a smooth transition no matter what moulding choices and wall options were made.
Mesh primitives (panel, cuboid, cylinder)

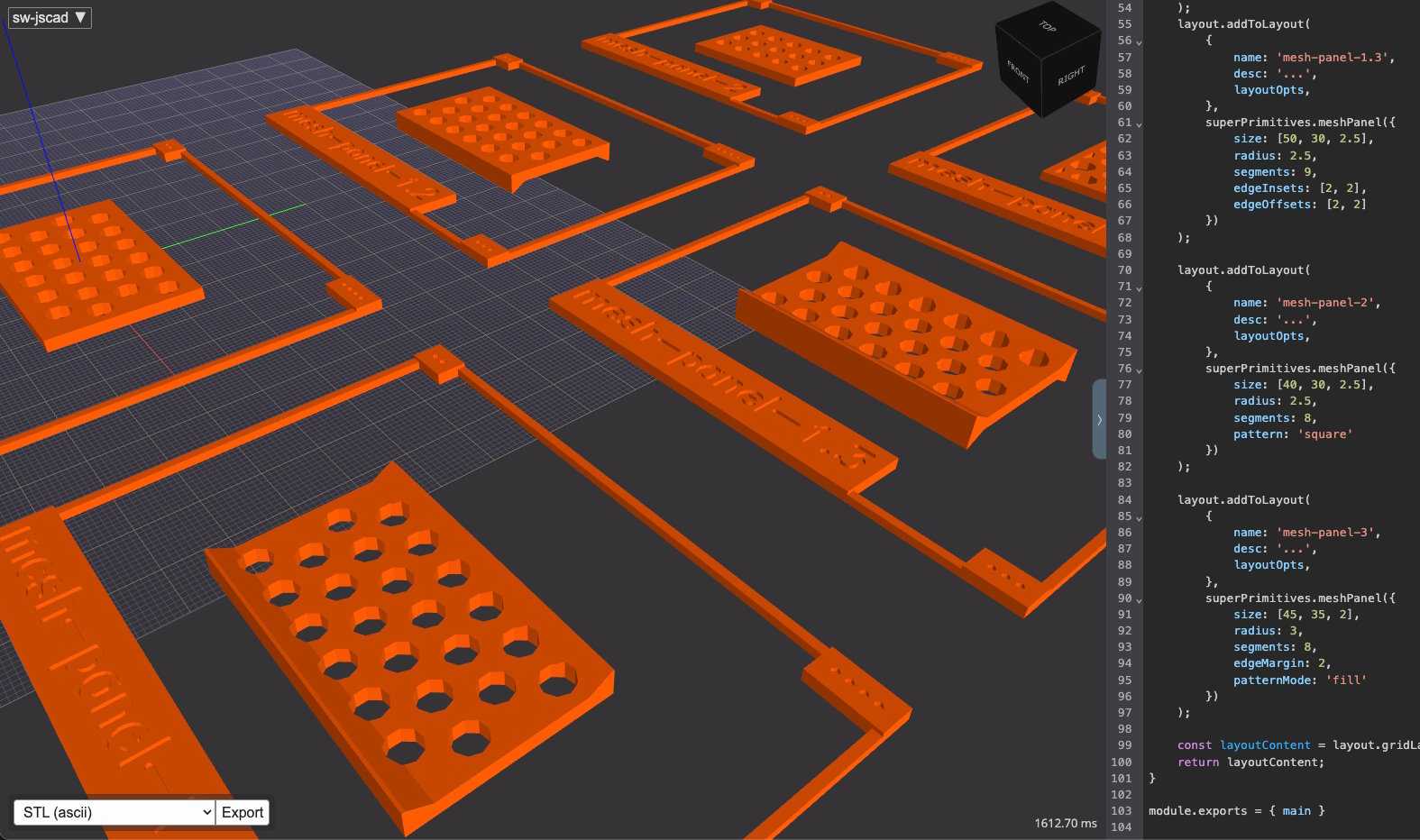

Panels with configurable mesh pattern:
Cuboid built with said panels:

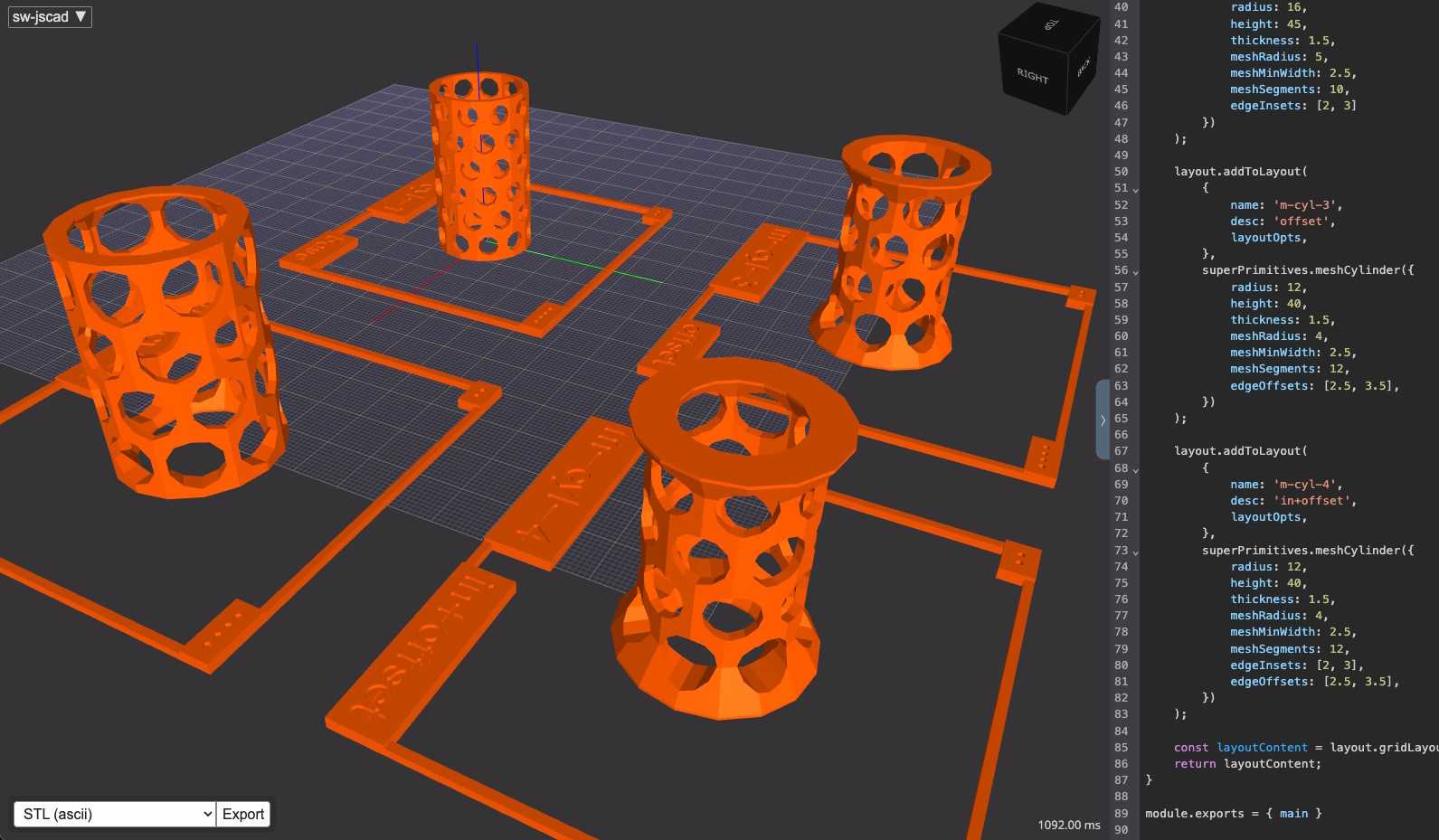

Cylinder with similar ideas
Misc

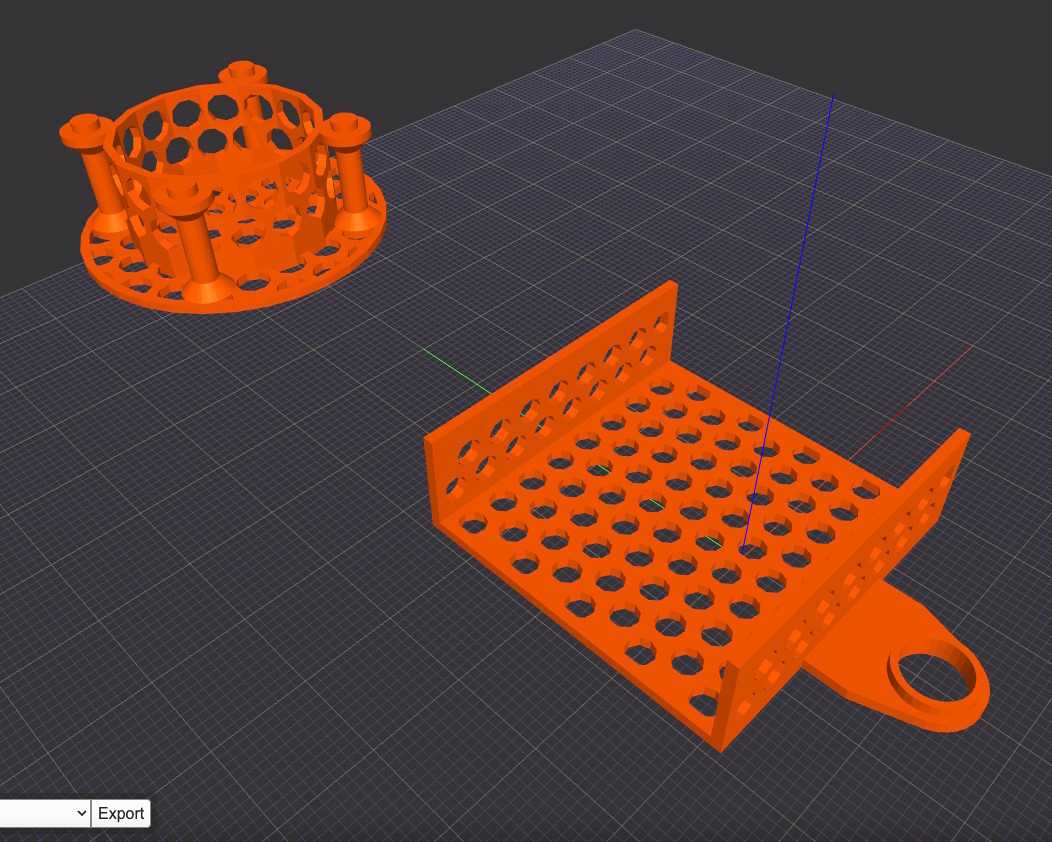

Here I’m designing a pegboard-to-surface mount and something similar for mounting something under a floor joist

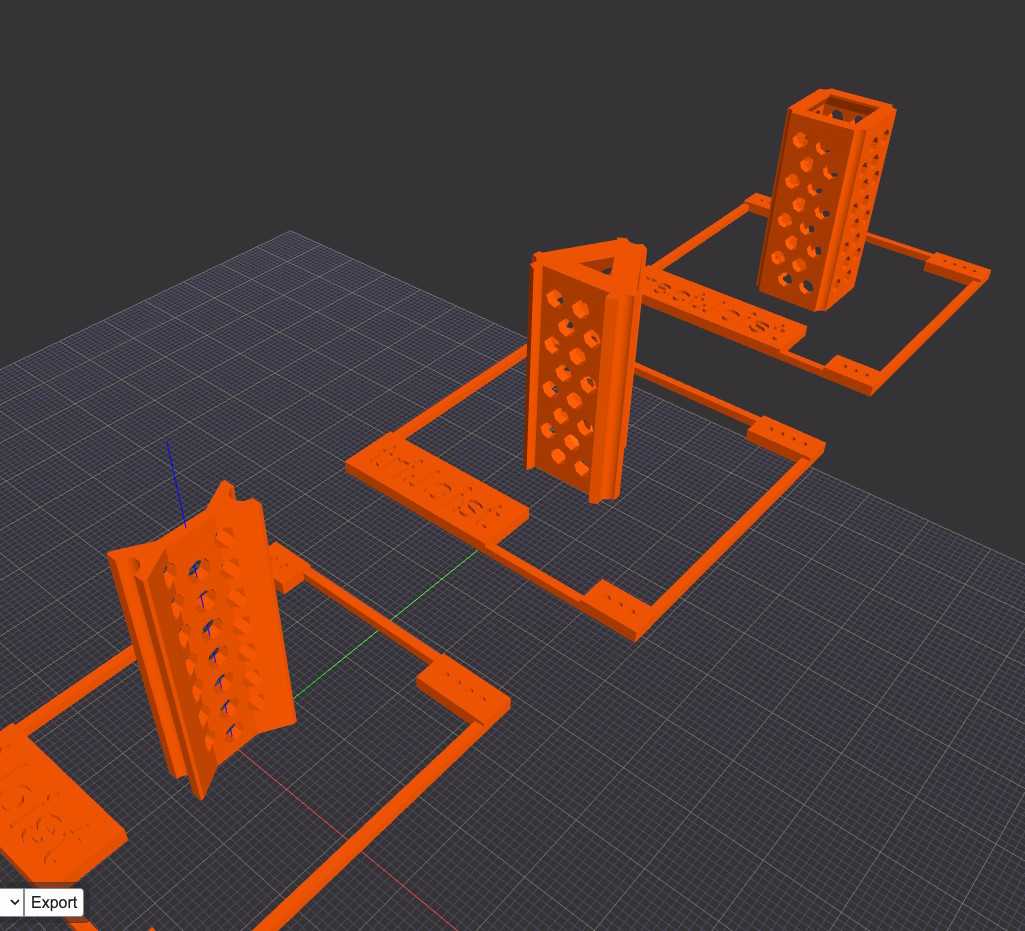

A more advanced idea - creating joists using dowels:
